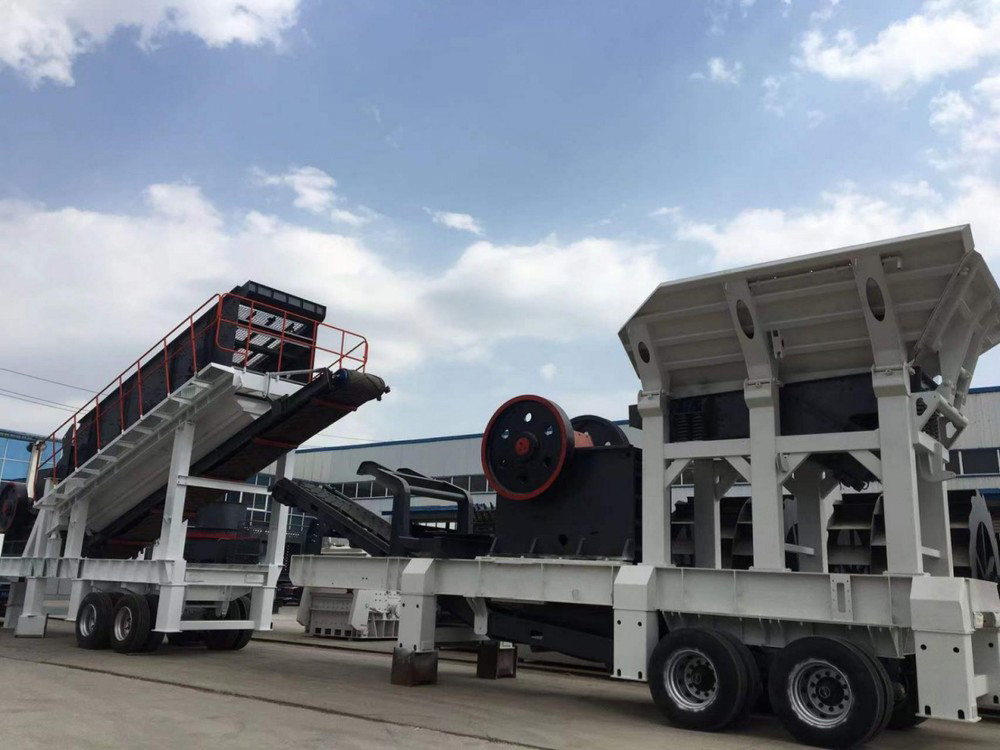

Mobile PE250x400 Jaw Crusher Mining Stone Jaw Crusher With Conveyor
Features of mobile jaw crusher:
Efficient operation: can directly handle large pieces of materials and improve production efficiency.
Flexible deployment: can be built and used at different construction sites at any time, saving construction costs.
High crushing ratio: jaw crusher has a simple structure, reliable operation, and can achieve a high crushing ratio.
Strong mobility: the equipment can be quickly moved between different sites and has strong adaptability.
Automation control: equipped with advanced control system, simple operation, and convenient real-time monitoring.
Energy saving and environmental protection: low energy consumption and low noise during the crushing process, in line with environmental protection requirements.
Structure:
Crusher body: including fixed jaw plate and movable jaw plate, responsible for the initial crushing of materials.
Transmission system: motor driven, power transmission through belt and gear transmission device.
Chassis: equipped with tires or crawler tracks for easy movement.
Feed port and discharge port: adjustable design to meet different particle size requirements.
Applicable raw materials:
Ore (such as limestone, granite, basalt, etc.)
Construction waste (such as concrete, bricks, etc.)
Raw materials mined from mines
Sand and gravel
Applicable scenarios:
Construction sites: On-site processing of construction waste such as concrete and bricks for easy reuse.
Mining: Preliminary crushing of mined ore to improve subsequent processing efficiency.
Highway and railway construction: Provide the required sand and gravel to support infrastructure construction.
Environmental protection projects: Process industrial waste and promote resource recycling.
Mobile jaw crusher is widely used in various projects and environmental protection management with its high efficiency and flexibility, meeting the needs of different fields.
Jaw crusher machine specification:
| | Feed port size (mm) | Maximum feed size (mm) | Discharge port adjustment range (mm) | Machine capacity (T/H) | Speed | Power (KW) | Weight |
| PE-250X400 | 250X400 | 210 | 20-60 | 5-20 | 300r/min | 15 | 2800kg |
| PE-400X600 | 400X600 | 360 | 40-100 | 16-50 | 260r/min | 30 | 7600kg |
| PE-500X750 | 500X750 | 450 | 50-100 | 40-100 | 275r/min | 55 | 12000kg |
| PE-600X900 | 600X900 | 500 | 65-160 | 50-150 | 250r/min | 75 | 18000kg |
| PE-750X1060 | 750X1060 | 650 | 80-140 | 110-300 | 250r/min | 90-110 | 28600kg |
| PE-900X1200 | | 780 | 90-165 | 220-350 | 200r/min | 110-132 | 35000kg |
| PE-1200X1500 | 1200X1500 | 1100 | 150-300 | 400-500 | 180r/min | 160-180 | 42600kg |
| PE-250X750 | 250X750 | 210 | 25-60 | 13-50 | 300r/min | 30 | 5550kg |
| PE-250X1000 | 250X1000 | 210 | 25-80 | 20-80 | 330r/min | 42 | 7200kg |
